Mass Production Pin Type Nano-Bead Mill: NT-V

High efficiency pin-type grinding structure is suitable for continuous and circular production of nano-scale grinding with a large flow rate. Production efficiency can be increased by 30~50% after integrated into production line. Widely used in nano new materials, magnetic materials, electronic ceramics, ceramic inks, lithium iron phosphate, alumian and other industries. The newly upgraded, more accurate and stable operating system, in which flow rate can be set on the PLC and a new safety production protection function is added.

Specifications
Features
Material Selection
Technical Parameters

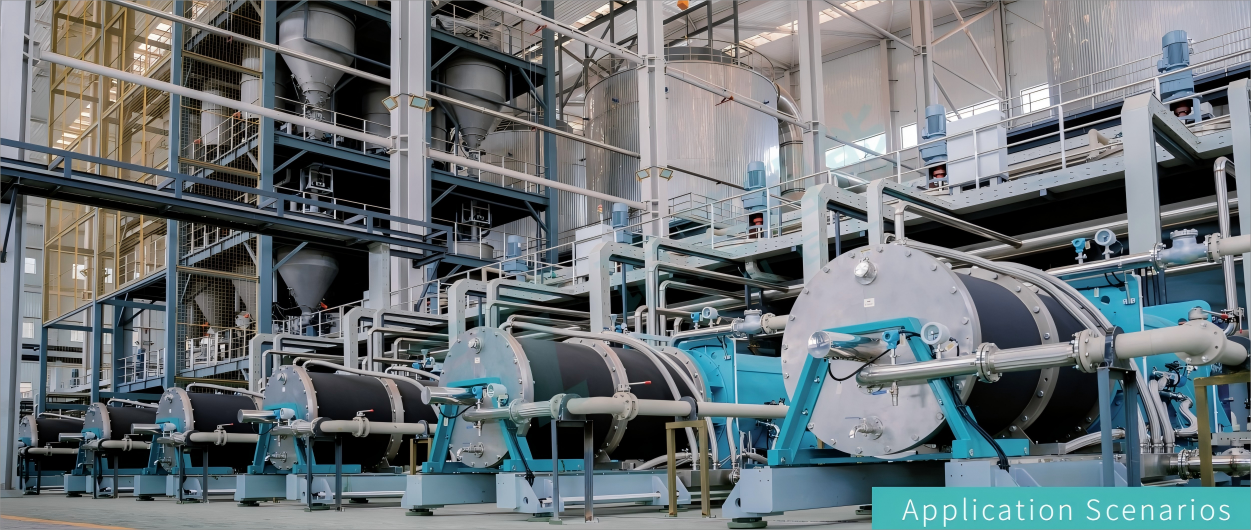

Applications

Specifications of Mass Production Pin Type Nano-Bead Mill: NT-V

  • Output fineness: 100nm-2um

  • Zirconia bead size:0.2-2.0mm

  • Solvent system: Water-based /Solvent-based

  • Optional materials: Tungsten carbide/Polyurethane/Zirconia/ Silicon carbide /Silicon nitride


Features of Mass Production Pin Type Nano-Bead Mill: NT-V

  • High energy density pin-type bead mill

  • Designed for mass production (continuous mode or circular mode)

  • Narrower particle size distribution

  • High grinding efficiency with a large flow area screen separator

  • Flexible change of chamber linear materials for grinding materials requirements

  • Available for a wide range of material viscosity

  • Low temperature material output control with effective grinding chamber cooling system

  • Easy operation and process control

  • Smooth discharge

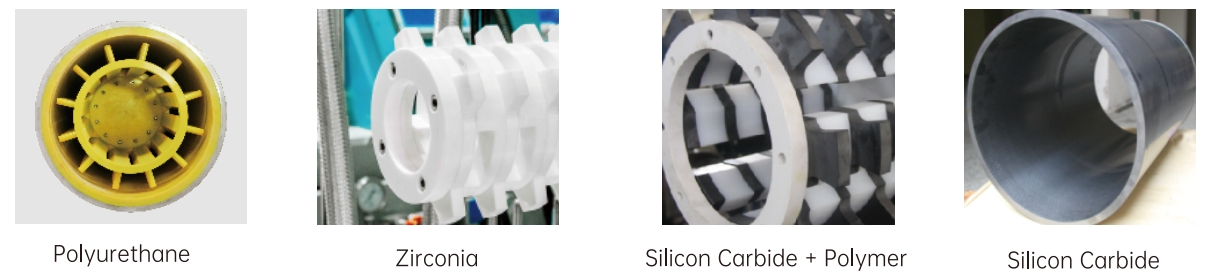

Material Selection of Mass Production Pin Type Nano-Bead Mill: NT-V

Material Selection of Mass Production Pin Type Nano-Bead Mill: NT-V

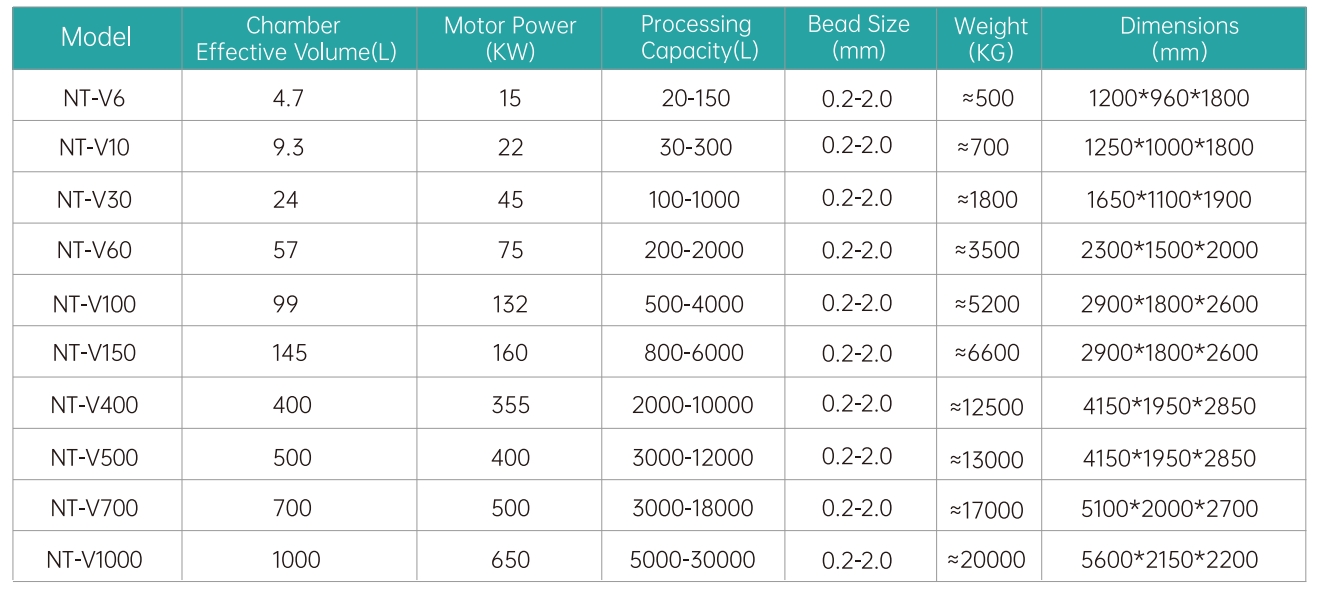

Technical Parameters of Mass Production Pin Type Nano-Bead Mill: NT-V

Technical Parameters of Mass Production Pin Type Nano-Bead Mill: NT-V
