Double Screw Continuous Pulping Machine

Good pulping effect: The slurry is dispersed, meshed, cut, and extruded repeatedly in the long and narrow barrel to form a good dispersion effect; Good uniformity, each material is mixed into the barrel according to the same ratio, and the discharge is consistent; Low metal content, barrel, and screw use high wear-resistant and corrosion-resistant materials, and after several iron removal, the metal content of battery slurry is reduced a lot.

  • Low operating cost: According to the actual production arrangement, it can be divided into a powder feeding station and a slurry mixing station, each station can be assigned 2 workers; Low installed power, and small pulp energy consumption per unit volume, can reduce operating costs.

  • Low energy consumption: 2000l/h continuous homogenizing equipment installed power of 250kw.

  • Small footprint: 2000l/h continuous homogenizing equipment covers a space of 17m (length) x7m (width) x15.5m(height).

  • Easy to maintain: The extruder screw component adopts the building block type, the worn component can be taken out and replaced individually, and the extraction of the screw is convenient and simple.

Specifications
Features
Technical Parameters
Applications

Specifications of Double Screw Continuous Pulping Machine

  • Continuous homogenization process from the twin screw extruder unit: base, motor, barrel, coupling, reducer, screw and other accessories.

  • Enhanced Results.

  • The continuous homogenization process is derived from the twin screw extruder. different raw materials are added to the premixed twin screw extruder by the weightless feeder according to different ratios, and the powder is premixed. then the premixed powder is added to the twin screw host machine, and then mixed with different liquid raw materials according to different ratios. negative pressure drawing, extraction and exhaust, so that the material in the mixing process received diversification and dispersion, and finally achieve better mixing effect.


Features of Double Screw Continuous Pulping Machine

  • The product developed by langling intelligent for the lithium battery industry is a new type of pulping process using twin-screw continuous pulping.

  • Twin-screw continuous pulping machine, modular twin-screw structure, integrated conveying, mixing, dispersing, exhaust in one, can realize continuous material processing, continuous discharge, function to achieve free collocation, to meet the needs of different working conditions; solve the cost and energy loss caused by single function.

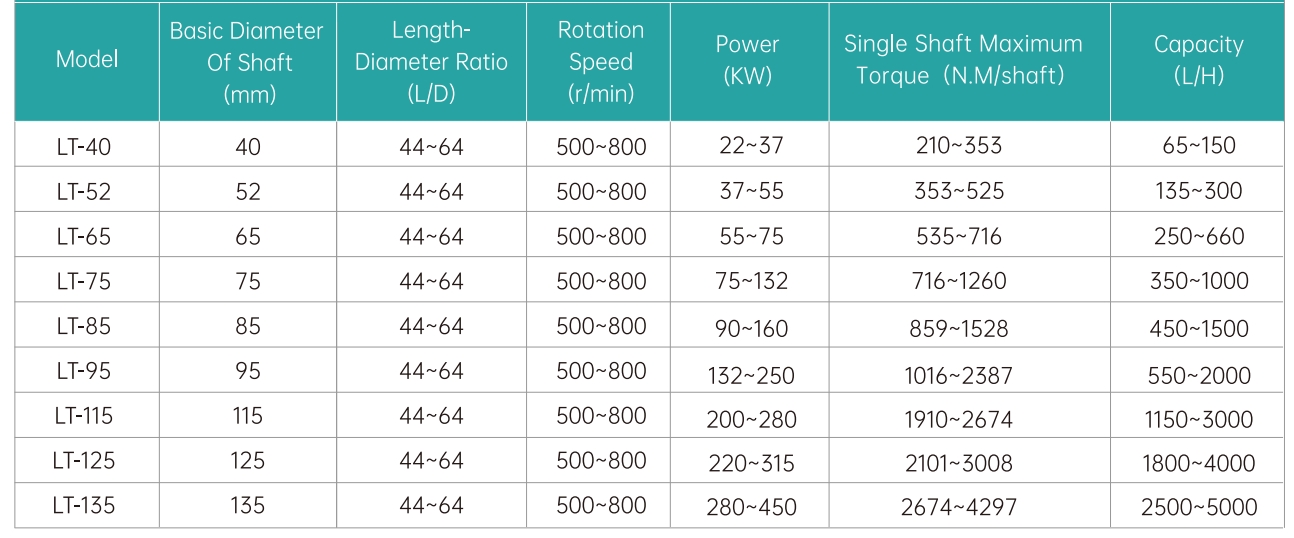

Technical Parameters of Double Screw Continuous Pulping Machine

Technical Parameters of Double Screw Continuous Pulping Machine
