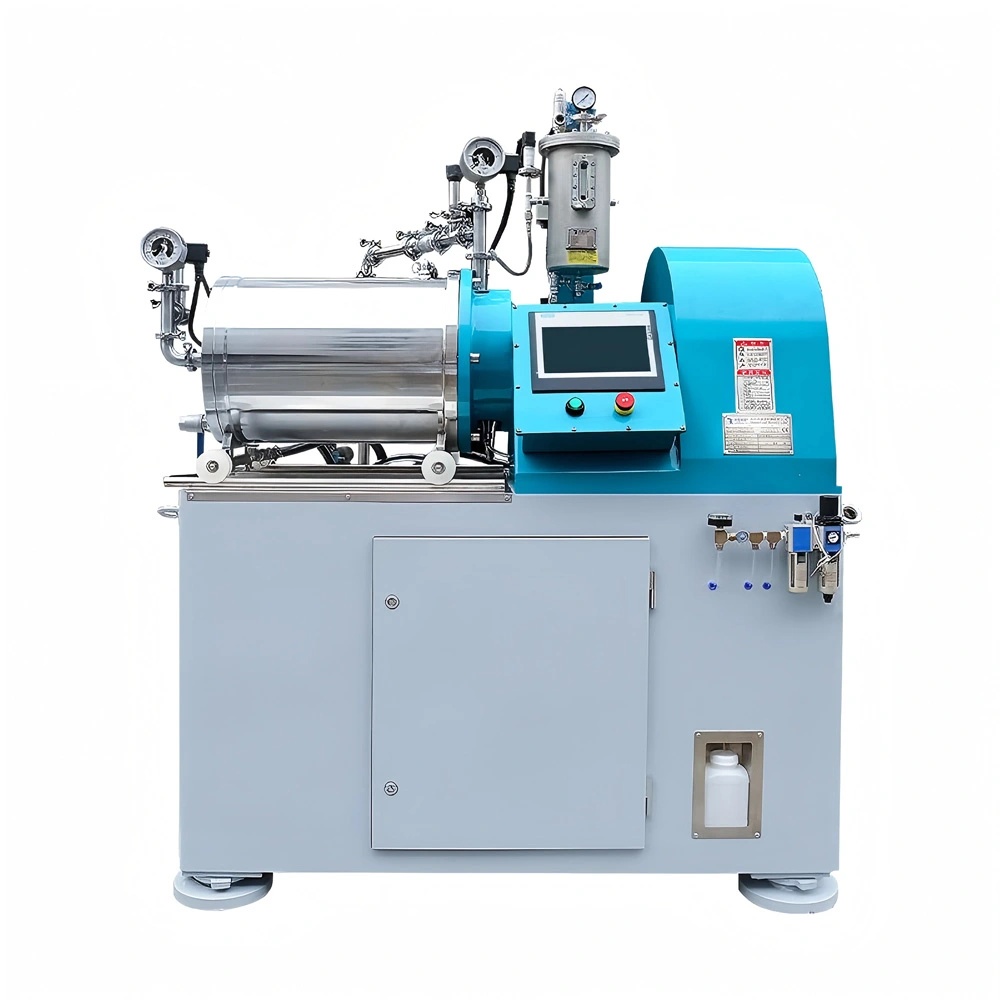

Turbine Nano Bead Mill: NT-X

The conveying pump pumps the pre-diluted and stirred liquid-solid mixed raw materials into the grinding chamber, and the main shaft drives the dispersing turbo to rotate at a high speed, and stirs the grinding media (glass beads, ceramic beads, zirconia beads, alumina beads, etc.) in the grinding chamber. Make it produce swirling flow and radial and axial movement, so as to grind and disperse the material, so that the material can reach the set fineness. At the same time, the working pressure and working temperature are automatically controlled by the electric contact pressure gauge and electric contact temperature gauge to ensure the safe operation of the whole machine. During this period, the product and the grinding media are separated by a dynamic discharge gap.

Specifications
Features
Material Selection
Technical Parameters
Applications

Specifications of Turbine Nano Bead Mill: NT-X

  • Output Fineness: 200nm-2um

  • Zirconia Bead Size: 0.3-2.0mm

  • Separation System: Shaft Separation / ScreenSeparation / Ceramic Sheet Separation

  • Grinding Structure: Turbo

Features of Turbine Nano Bead Mill: NT-X

  • Large grinding flow in a short time

  • Isolation plates grinding chamber ensures high flow rate

  • Flexible grinding without destroying the shape of the material

  • Circulation grinding available

  • Better material specific surface area

  • Effective cooling system to prevent rapid heating of materials

  • Suitable for nano-scale grinding of medium and low viscosity materials

  • Using bead size ≥ 0.3mm

  • Ceramic or PU grinding materials have zero pollution

  • PLC automatic control system, lower labor costs

  • Easy to operate, clean and maintain


Material Selection of Turbine Nano Bead Mill: NT-X

Material Selection of Turbine Nano Bead Mill: NT-X

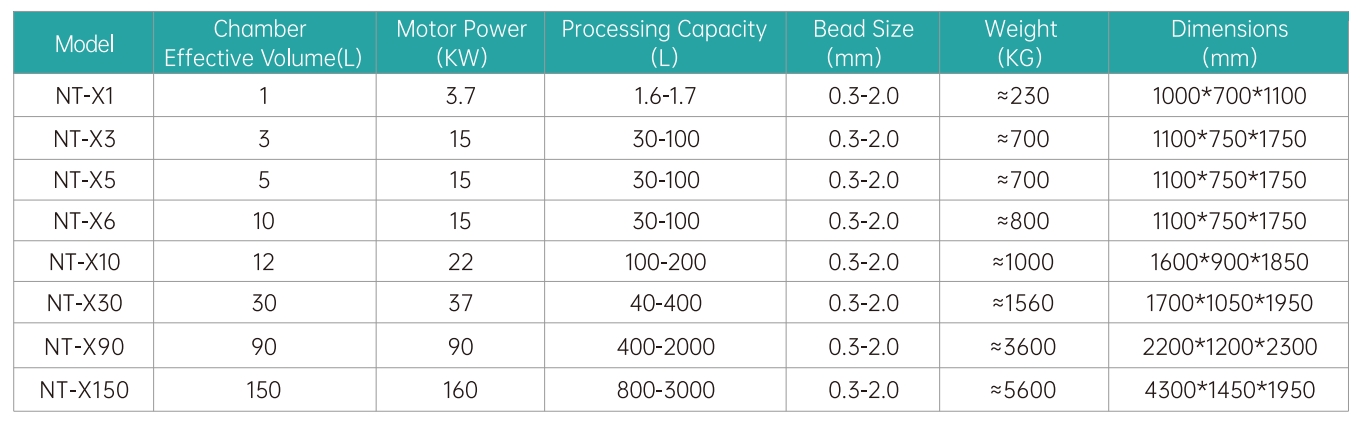

Technical Parameters of Turbine Nano Bead Mill: NT-X

Technical Parameters of Turbine Nano Bead Mill: NT-X
