Cantilever Dual Planetary Mixer XJ System

The patented internal kneading planetary propeller adopts the integrated molding process of 3d printing investment casting and CNC multi-axis linkage compound processing (turning-grinding-polishing), and the more optimized cross-sectional shape has lower resistance and lower energy consumption. 4-5 times more efficient than ordinary paddles (compared to ordinary pentagonal twist paddles).


Product Advantages
Features
Material Selection
Technical Parameters
Applications

Product Advantages of Cantilever Dual Planetary Mixer XJ System


  • Sun gears and planetary gears are carburized and quenched with high-quality alloy steel, the ring gear is surface-hardened with high-quality alloy steel, and all gears are processed by grinding;

  • The planet carrier and the bearing seat are welded with cast steel or high carbon steel and annealed to eliminate stress. The box body and the planet carrier are optimized by means of computer simulation deformation and stress analysis, so that the bearing capacity is higher;

  • Highly modular the design can standardize many basic parts, which is more economical in mass production, effectively reduces the amount of inventory and improves the speed of delivery;

  • All bearings adopt roller bearings with appropriate specifications, and the bearings of the stressed parts are all imported brands;

  • Both the planetary shaft and the dispersed shaft adopt radial skeleton oil seals, and the radially loaded shaft adopts double sleeve pressure-resistant oil seals;

  • It comes with a wealth of accessories for customers to choose, and can be combined with other products of our company to form a production line system with more functions.

Features of Cantilever Dual Planetary Mixer XJ System


During the working process of the MT/LMT series power vacuum mixer, the two parallel stirring paddles operate according to the set fixed rotation ratio, and rotate along the mixing tank at the same time, so that the material moves from the inner wall of the mixing tank to the vicinity of the stirring paddle. The high-speed dispersing tooth discs of the other two independent power devices also run along the mixing tank with the revolution to perform efficient dispersion and emulsification. Both the stirring paddle and the high-speed dispersing tooth disc are frequency-controlled, and the speed can be set according to the production process to achieve different shear purpose. This kind of motion can make the material achieve a completely uniform mixing effect in a short time.

Material Selection of Cantilever Dual Planetary Mixer XJ System


Material Selection of Cantilever Dual Planetary Mixer XJ System

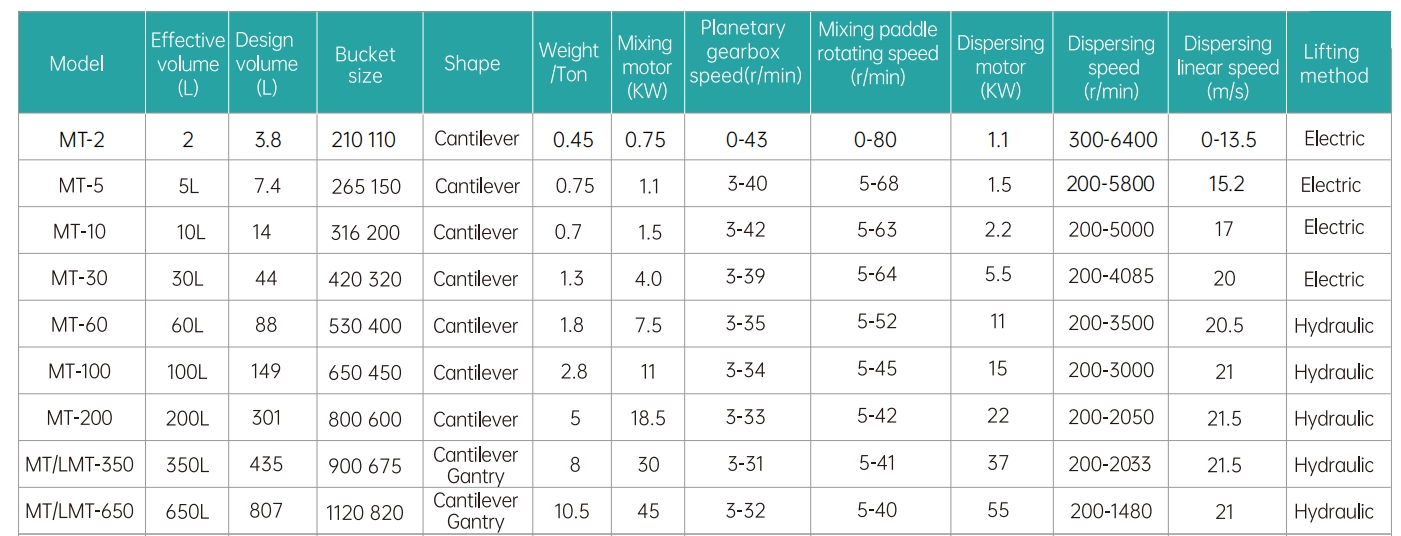

Technical Parameters of Cantilever Dual Planetary Mixer XJ System

Technical Parameters of Cantilever Dual Planetary Mixer XJ System
