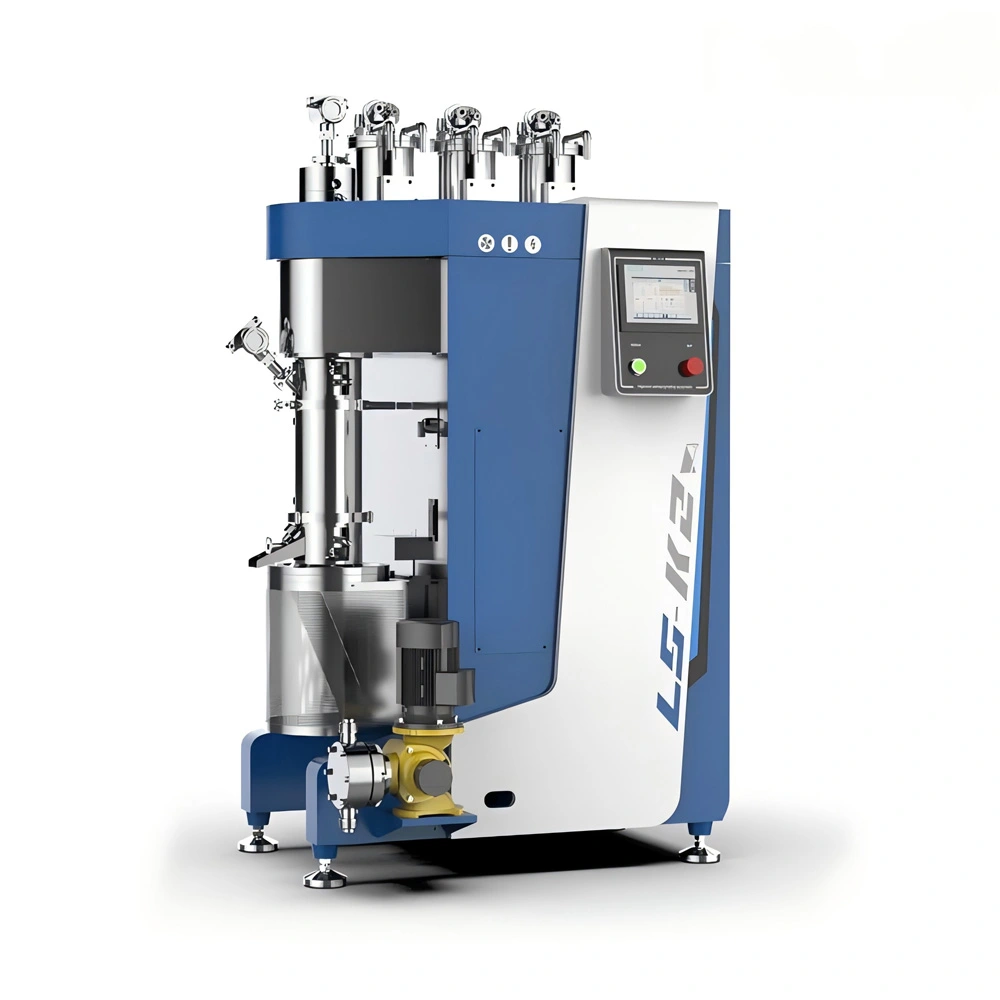

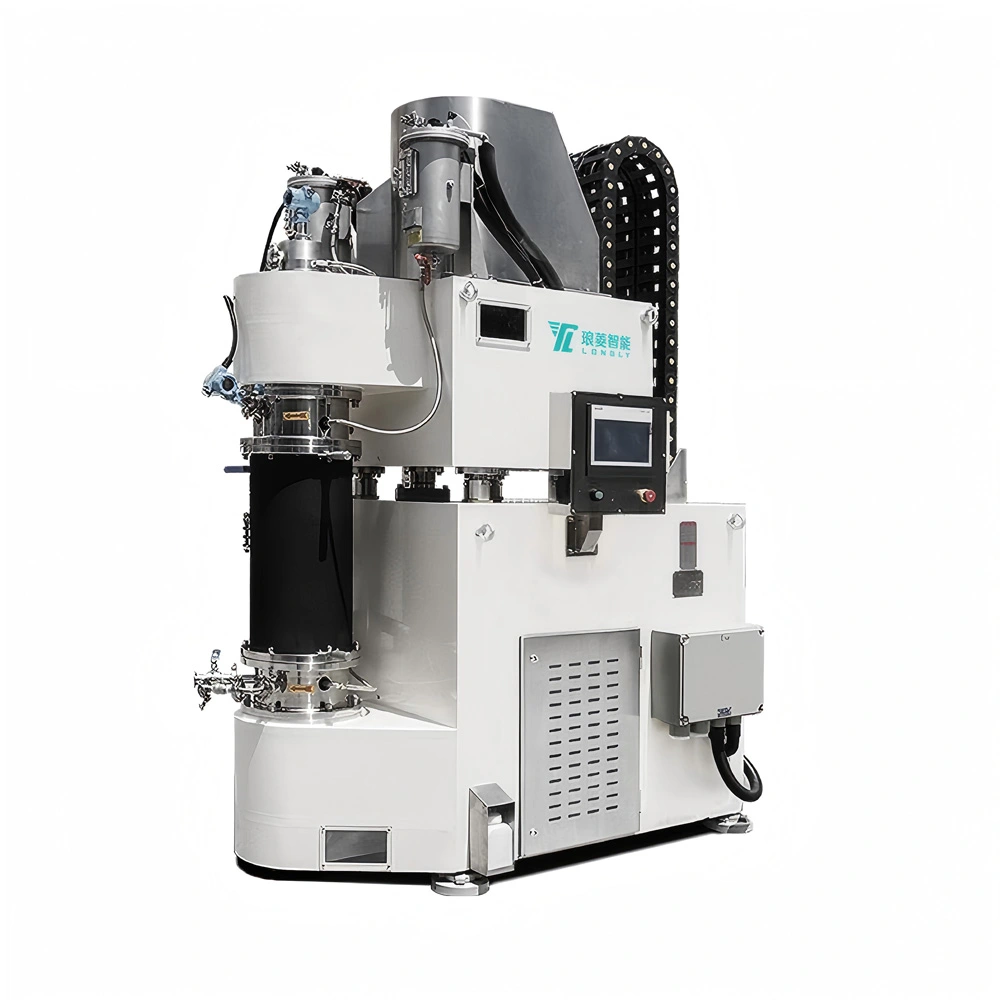

Dual Power Vertical Nano Bead Mill: LS-K

  • No dead angle in the grinding chamber, high efficiency and narrow particle size distribution.

  • When the machine stops, the zirconium beads settle at the separation wheel bottom to avoid beads leakage when starting.

  • No screen separation, no clogging, and maintenance-free.

  • Zirconia beads longer service time without sieving.

  • The separation wheel and the rotor are independent main shafts and motors, which do not affect each other.

  • The rotor and the separation wheel can work at different speeds.

  • Optional core structural parts’ materials selection for different materials grinding, no pollution and less wear rate.

  • Double check valve for ultra-fine grinding to prevent backflow of grinding media.

  • Special mechanical seal for vertical bead mill, no leakage, stable and reliable performance, low energy consumption and low heat generation Installation, repair and maintenance are more convenient.


Specifications
Features
Technical Parameters

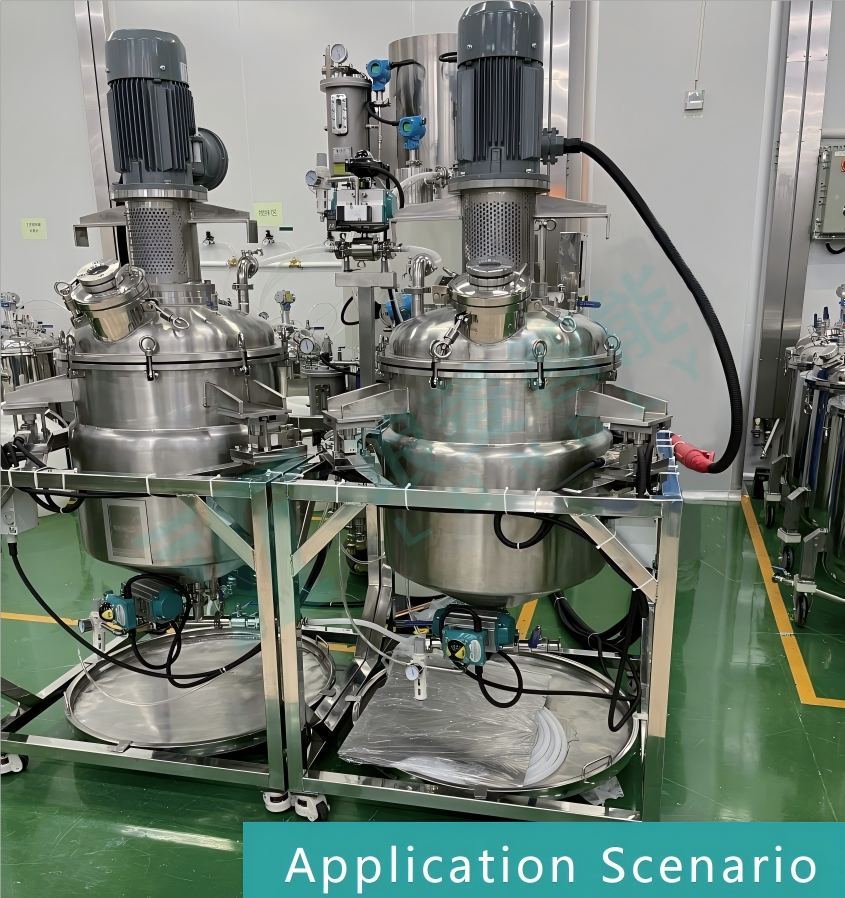

Applications

Specifications of Dual Power Vertical Nano Bead Mill: LS-K

  • Output fineness: 30nm-300nm

  • Zirconia bead size: 0.03-0.3mm

  • Separation system: Centrifugal separation

  • Grinding structure: New model turbo/pin


Features of Dual Power Vertical Nano Bead Mill: LS-K

  • No dead angle in the grinding chamber, high efficiency and narrow particle size distribution

  • When the machine stops, the zirconium beads settle at the separation wheel bottom to avoid beads leakage when starting

  • No screen separation, no clogging, and maintenance-free

  • Zirconia beads longer service time without sieving

  • The separation wheel and the rotor are independent main shafts and motors, which do not affect each other

  • The rotor and the separation wheel can work at different speeds

  • Optional core structural parts’ materials selection for different materials grinding, no pollution and less wear rate

  • Double check valve for ultra-fine grinding to prevent backflow of grinding media

  • Special mechanical seal for vertical bead mill, no leakage, stable and reliable performance, low energy consumption and low heat generation Installation, repair and maintenance are more convenient

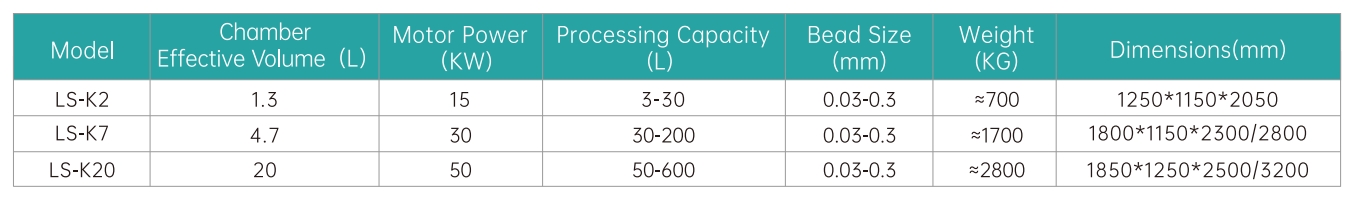

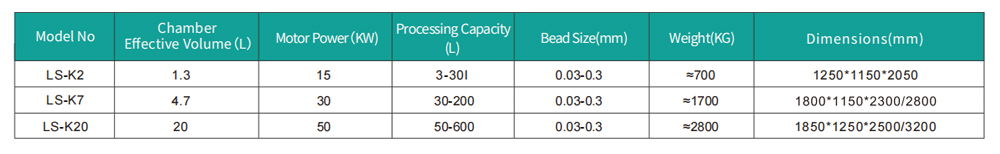

Technical Parameters of Dual Power Vertical Nano Bead Mill: LS-K

Technical Parameters of Dual Power Vertical Nano Bead Mill: LS-K
