Zirconia Beads vs. Glass Beads: How Grinding Media Affects Grinding Efficiency and Cost

In wet grinding and dispersion processes, grinding media often receive less attention than mills or production parameters. However, the choice between zirconium beads and glass beads can significantly influence milling efficiency, product quality, operating costs, and even equipment lifespan.

For manufacturers in industries such as lithium battery materials, inks, coatings, pharmaceuticals, and electronic pastes, selecting the right grinding media is not simply a purchasing decision—it directly affects productivity and profitability.

This article compares zirconium beads and glass beads from both technical and economic perspectives, helping manufacturers choose the most suitable solution for their production goals.

Zirconium Beads vs Glass Beads: Understanding the Key Differences

Although both materials are widely used as grinding media, their physical properties differ substantially.

At first glance, glass beads appear more economical because of their lower purchase price. However, evaluating grinding media solely by initial cost can lead to higher long-term production expenses.

The true comparison lies in milling efficiency, wear rate, contamination risk, and total operating cost.

How Zirconium Beads Improve Milling Efficiency Compared with Glass Beads

The primary function of grinding media is to transfer energy to particles during milling.

Because zirconium beads have more than double the density of glass beads, each collision delivers significantly greater impact energy. This allows particles to be broken down faster and more efficiently.

Benefits of higher-density zirconium beads include:

• Faster particle size reduction

• Shorter milling cycles

• Improved dispersion quality

• Higher production throughput

• Easier achievement of submicron and nanometer particle sizes

In applications requiring ultra-fine grinding, such as lithium iron phosphate (LFP), conductive carbon materials, ceramic slurries, and electronic inks, zirconium beads often achieve target fineness much faster than glass beads.

Many manufacturers report productivity improvements of two to three times when switching from conventional glass media to high-density yttria-stabilized zirconium beads under comparable operating conditions.

For high-volume production environments, these efficiency gains translate directly into lower energy consumption and increased output.

Why Zirconium Beads Deliver Lower Wear and Longer Service Life

One of the most overlooked costs in milling operations is grinding media consumption.

Glass beads tend to fracture under high-energy milling conditions. As the beads wear down and break, operators must frequently replenish media to maintain process stability.

This creates several hidden costs:

• Continuous media replacement

• Production interruptions

• Increased maintenance workload

• Reduced process consistency

By contrast, high-quality zirconium beads exhibit extremely low wear rates. Their superior hardness and toughness allow them to withstand prolonged operation without significant degradation.

Advantages include:

• Longer service life

• Reduced media consumption

• Fewer production stoppages

• More stable milling performance

In many industrial applications, zirconium beads can last dozens of times longer than glass beads, making them a more economical choice over the full production lifecycle.

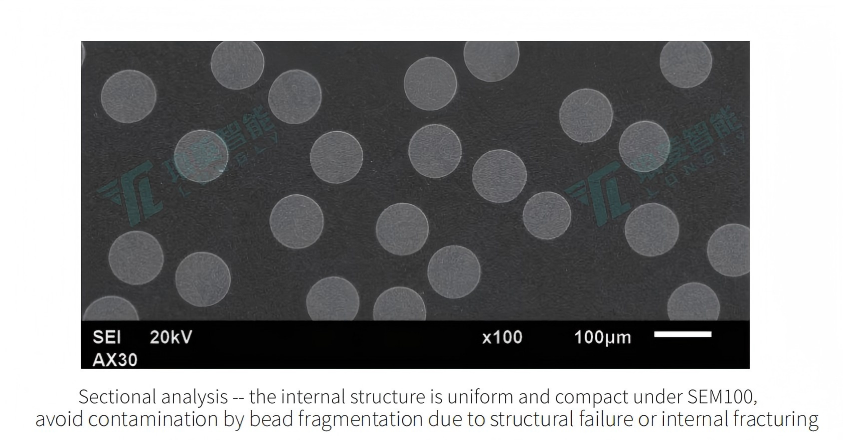

Zirconium Beads vs Glass Beads for Product Purity and Contamination Control

For industries where product purity is critical, grinding media selection becomes even more important.

As glass beads wear and fracture, they generate microscopic silica particles that may enter the product stream. In low-value applications, this contamination may be acceptable. However, in advanced manufacturing sectors, even small amounts of foreign material can affect performance.

Examples include:

• Lithium battery cathode and anode materials

• Pharmaceutical suspensions

• Cosmetic formulations

• Electronic conductive pastes

• Semiconductor materials

Zirconium beads are chemically inert and highly resistant to dissolution. Premium yttria-stabilized zirconia grinding media produce minimal contamination, helping manufacturers maintain strict quality standards.

For applications requiring high purity, zirconium beads are generally considered the industry-preferred solution.

Total Cost Analysis: Are Zirconium Beads More Cost-Effective Than Glass Beads?

A common misconception is that glass beads are always the cheaper option.

While the purchase price of glass beads is lower, the total cost of ownership often tells a different story.

Cost Factors Beyond Purchase Price

When evaluating grinding media, manufacturers should consider:

• Media consumption rate

• Milling time

• Energy usage

• Maintenance frequency

• Production downtime

• Product rejection rates

• Quality consistency

For continuous industrial production, zirconium beads often provide a significantly lower cost per ton of finished product despite their higher upfront investment.

Industry Recommendations: When to Choose Zirconium Beads or Glass Beads

Different applications require different grinding strategies.

As a general rule:

Choose zirconium beads when high fineness, high purity, and production efficiency are priorities.

Choose glass beads only when the process involves coarse grinding, limited production volumes, or strict budget constraints.

Why More Manufacturers Are Switching to Longly Zirconium Beads

As particle size requirements become increasingly demanding across battery, electronics, pharmaceutical, and specialty chemical industries, more manufacturers are moving toward high-performance grinding media solutions.

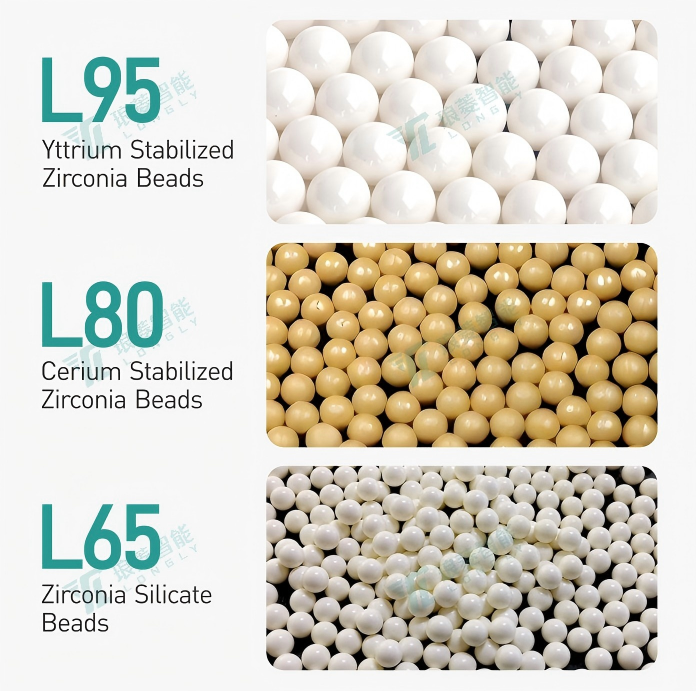

Longly offers a comprehensive range of high-quality zirconium beads designed for modern milling applications. With high density, excellent wear resistance, and outstanding chemical stability, Longly zirconium beads help customers achieve:

• Higher grinding efficiency

• Lower media consumption

• Reduced contamination risk

• Improved product consistency

• Lower total operating costs

Whether you are producing advanced battery materials, premium coatings, or precision electronic pastes, selecting the right grinding media can have a measurable impact on your bottom line.

FAQs

1. What is the main advantage of zirconium beads over glass beads?

Zirconium beads provide higher density and hardness, resulting in faster grinding, lower wear, and better product quality.

2. Are zirconium beads suitable for nano-grinding applications?

Yes. Their high impact energy makes them ideal for achieving submicron and nanometer particle sizes in demanding applications.

3. Do glass beads contaminate the material being processed?

They can. As glass beads wear or fracture, silica particles may enter the product, which can affect purity-sensitive applications.

4. Why are zirconium beads more expensive initially?

Zirconium materials are more advanced and costly to manufacture. However, their longer lifespan often reduces overall production costs.

5. Which industries benefit most from zirconium beads?

Lithium battery manufacturing, pharmaceuticals, cosmetics, electronic pastes, inks, coatings, and advanced ceramics are among the industries that benefit most from zirconium bead technology.
