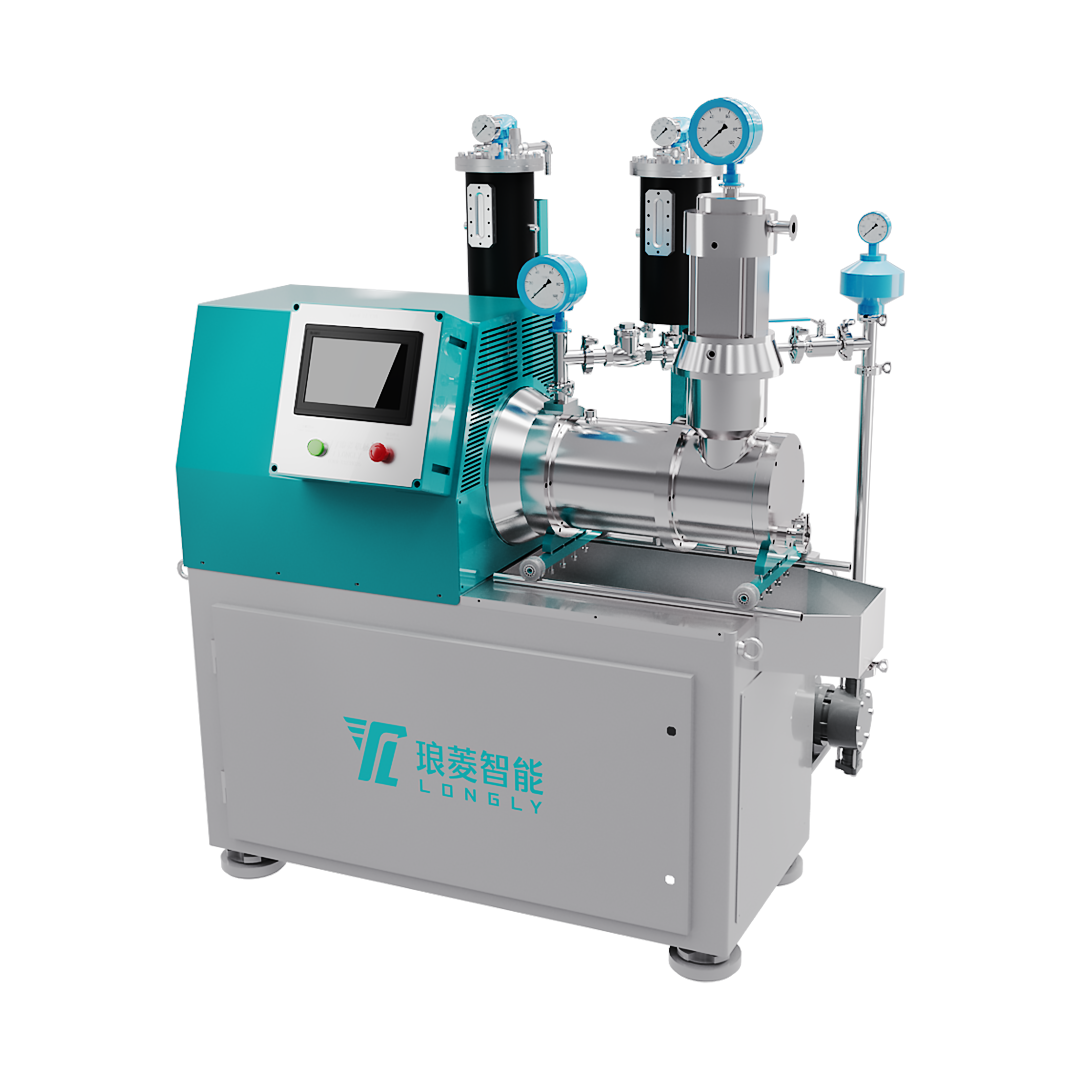

Name: Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE
Brand: Dongguan Longly Machinery Co., Ltd.

Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE

The vertical and horizontal bead mill NT-VE, developed with LONGLY's great efforts, will inject more flexibility and precision into wet grinding and bring good grinding performance. This unique innovation provides extraordinary grinding to the industry, demonstrating cutting-edge technology and grinding.
Nano Bead Mill NT-VE combines horizontal grinding and vertical centrifugal discharging, ensuring high efficiency and high quality in grinding, and has the advantages of bead separation in vertical. The slurries are pumped into the grinding chamber, pressurized, and rotated at high speeds in the gap between the grinding beads to perform functions such as dispersion and grinding. The milled materials are pressure-fed from bottom to top and discharged from above.
The pin-type rotor gathers high energy in the entire grinding area to achieve sufficient grinding, even with a small capacity. Centrifugal separator enables large flow processing and high-speed cycle operation.
Different customized models are available from 10L to 1000L to meet customers' requirements from laboratory to large-scale production.

Features of Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE

Horizontal grinding+ vertical discharging+ centrifugal separation, Patent Number:202320967243.7

The grinding dispersing rotor and separation adopt independent drives, so the grinding speed and separation speed can be adjusted according to different material characteristics.

Adopting the vertical + centrifugal discharging method, it can operate stably when using zirconium beads below 0.3mm, and provide high-quality Nano particles that are usually unobtainable.

Upgraded pin-type grinding structure, high-end motor system, sufficient power, high speed, stable running, smaller zirconium beads available, and large flow without clogging.

The centrifugal separation system has great performance on separation, the grinding media can be evenly distributed, and ultra-fine beads can be used.

Easy to disassemble, clean, assemble, and maintain due to the horizontal structure in grinding and dispersing areas

From laboratory to production, we have a wide range of volumes.

Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE

Specifications of Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE

Features of Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE

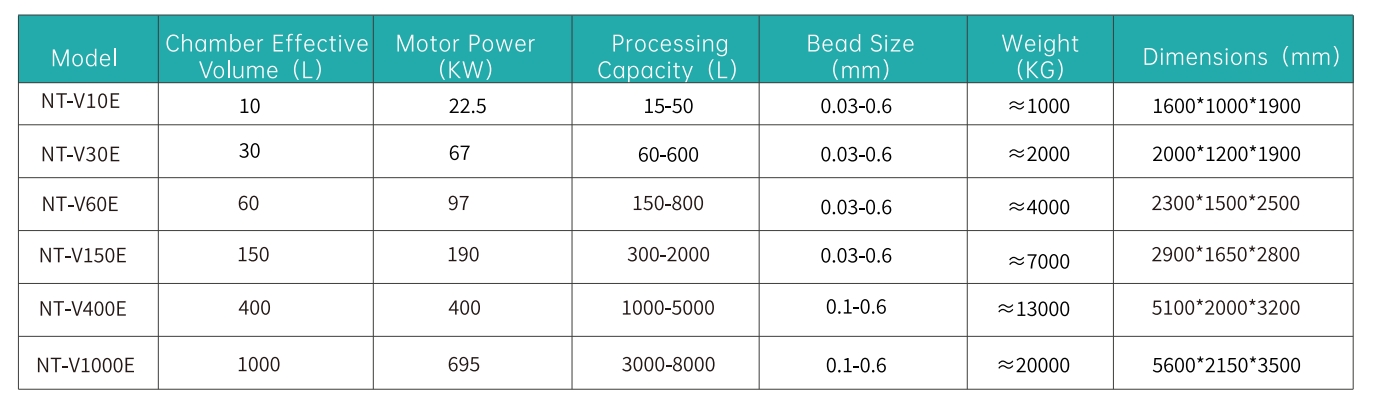

Technical Parameters of Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE

Applications of Dual Power Vertical and Horizontal Nano Bead Mill: NT-VE
